Based on the huge succes of the original SER-HV model line, Xpansion Instruments proudly presents
the introduction of the new SER2 model line of SER Universal Testing Platforms. Each SER2 unit
comes with a specific set of rheometer adapters so that
it can be used as a detachable fixture on a given host rheometer system.
Beginning with the
launch of the SER2 model line, all sales and marketing of the various SER2 models will be
handled by the respective instrument manufacturers on whose host system the SER2 model will
be accommodated. Xpansion Instruments will still handle sales and marketing responsibilities
for custom SER2 models for use on legacy host platforms no longer supported by the original
instrument manufacturer.
|
 |

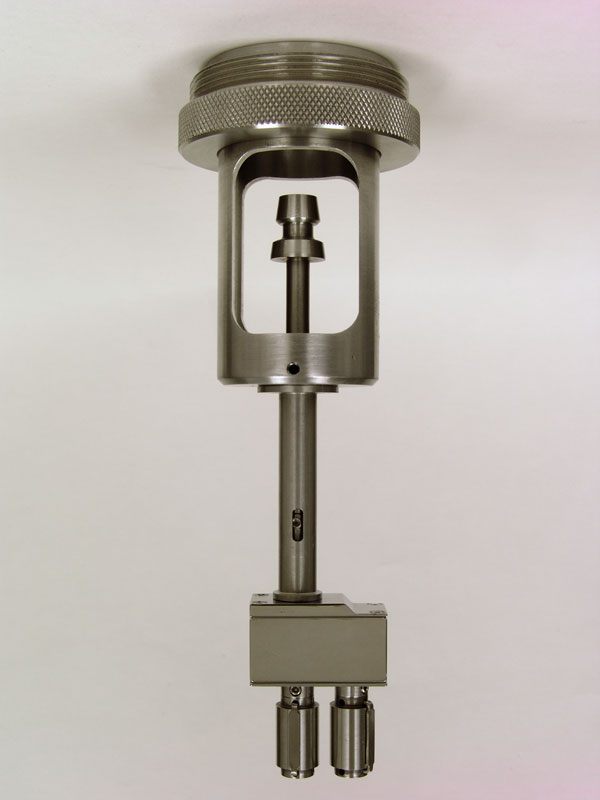

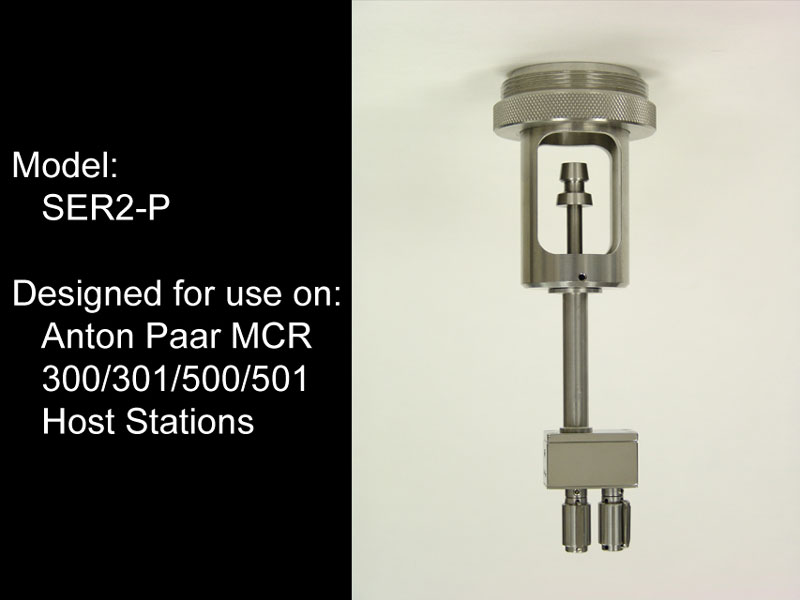

The model SER2-P has been adapted
for use on the
Anton Paar
MCR 300/301/500/501 line of
rotational rheometer systems, and can be easily accommodated within
the CTD450/600/1000 environmental chamber of the MCR host system
for controlled temperature testing. Because its drums
are cantilevered and suspended from the SER2 base chassis, the model
SER2-P
is also capable of fluid immersion testing.
For sales and price quotation information regarding
this model, contact
Anton Paar directly.
|
 |

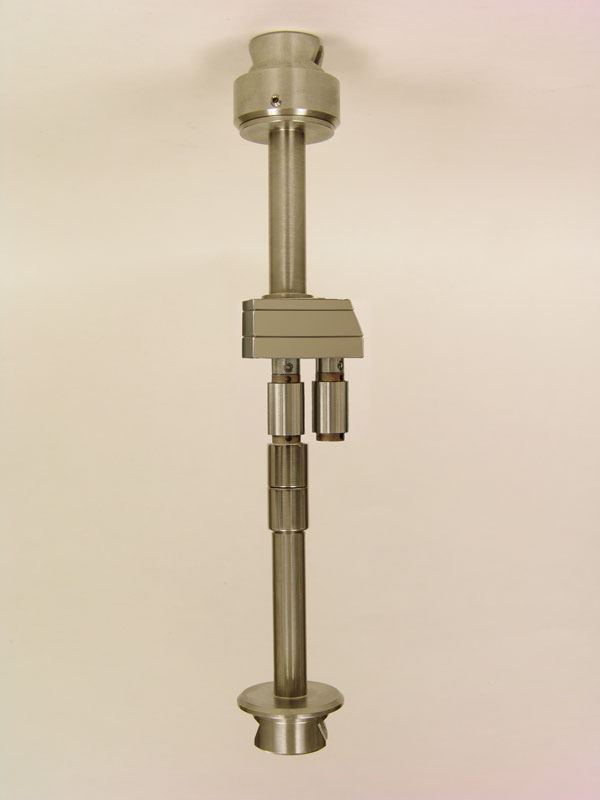

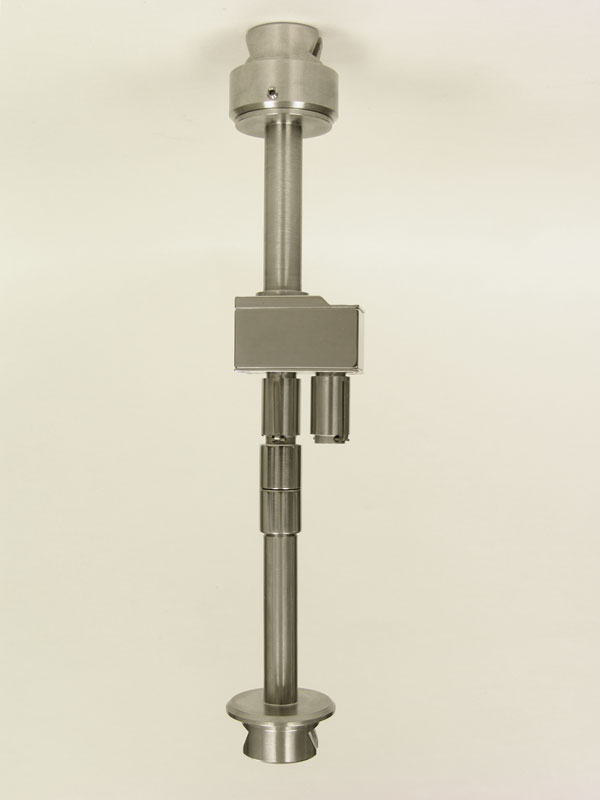

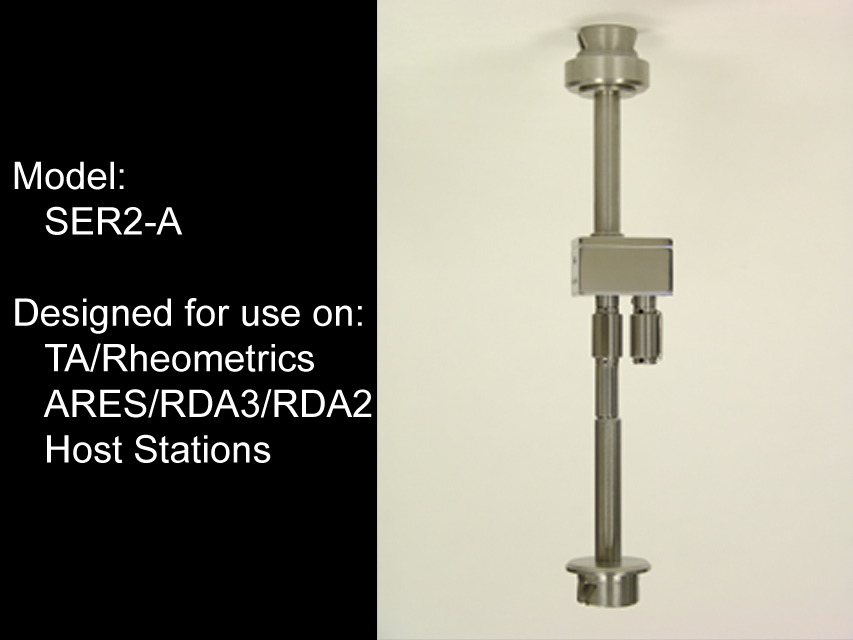

The model SER2-A has been adapted
for use on the TA Instruments/Rheometrics
ARES-G2, ARES, RDA-3, and RDA-2
rotational rheometer host systems, and can be easily accommodated within
the ARES-G2/ARES/RDA-3/RDA-2 environmental chamber
for controlled temperature testing. The model SER2-A is not configured for
fluid immersion testing.
For sales and price quotation information regarding
this model, contact
TA Instruments directly.
|
 |

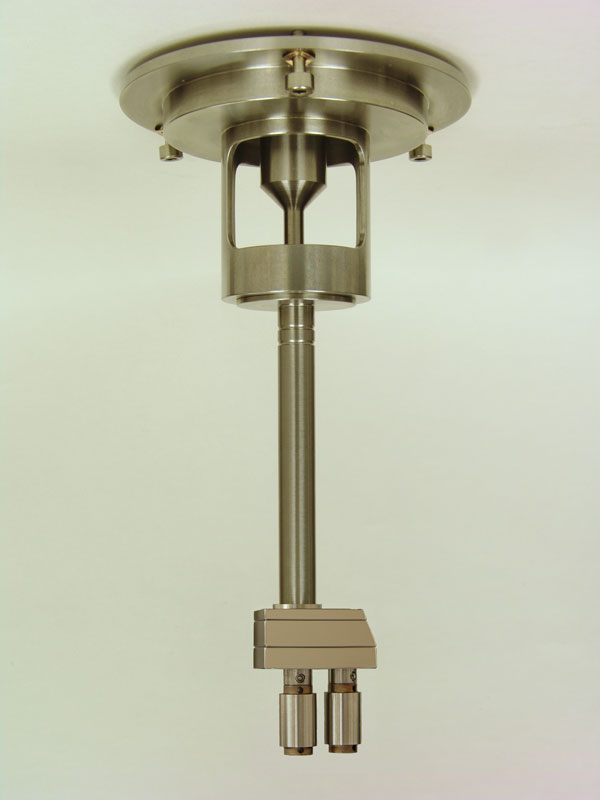

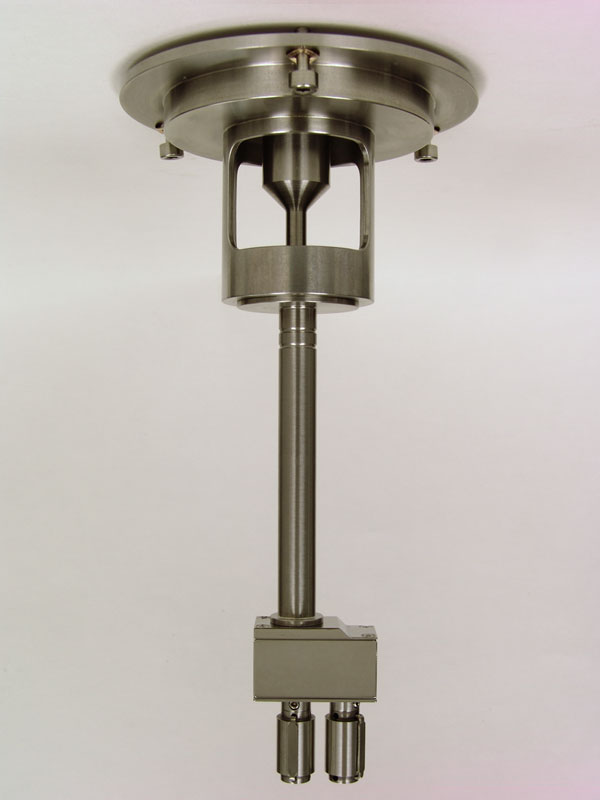

The model SER2-G has been adapted
for use on the
TA Instruments
AR-G2/2000EX line of
rotational rheometer systems and accommodation within
the ETC environmental chamber of the AR host system
for controlled temperature testing. Because its drums
are cantilevered and suspended from the SER2 base chassis, the model
SER2-G
is also capable of fluid immersion testing.
For availability and further information regarding
this model, contact
TA Instruments directly.
|
 |

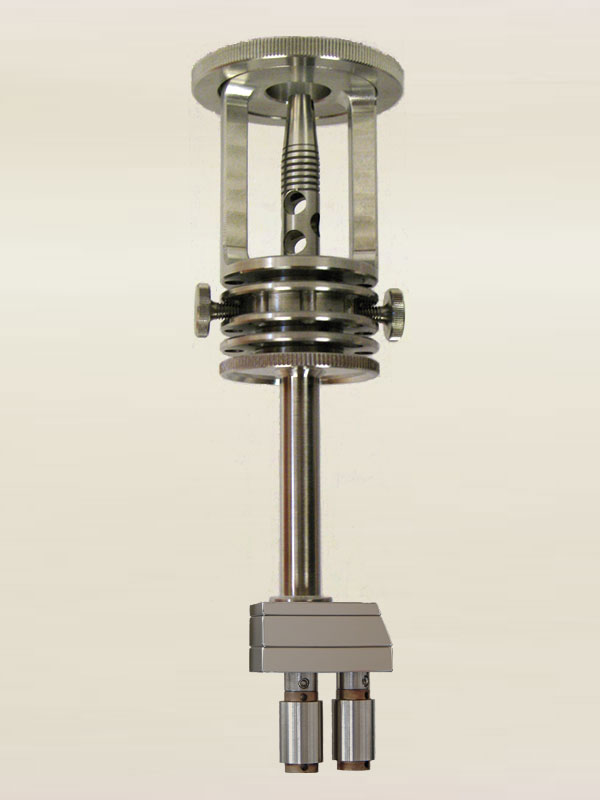

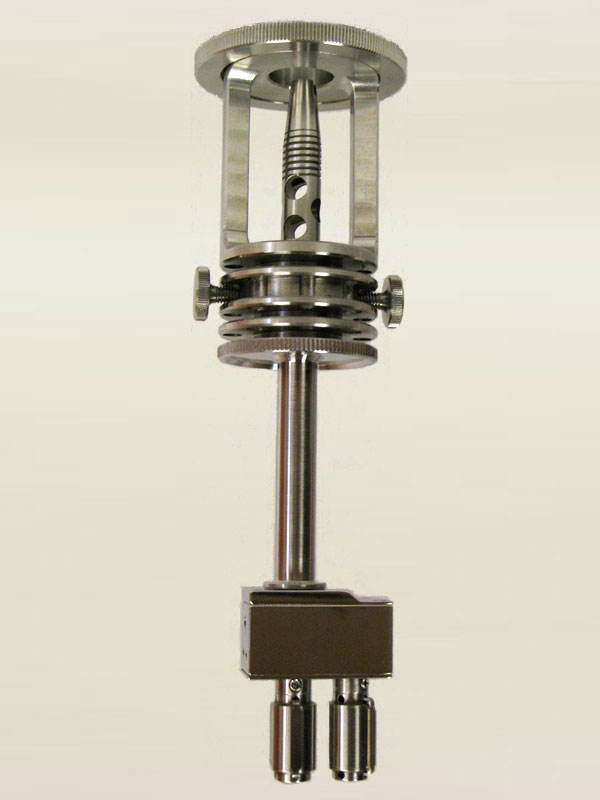

The model SER2-T has been adapted
for use on the
Thermo Scientific
MARS line of
rotational rheometer systems and accommodation within
the CTC environmental chamber of the MARS host system
for controlled temperature testing. Because its drums
are cantilevered and suspended from the SER2 base chassis, the model
SER2-T
is also capable of fluid immersion testing.
For availability and further information regarding
this model, contact
Thermo Scientific directly.
|
 |
The model SER2-M has been adapted
for use on the
Malvern Instruments
Kinexus line of
rotational rheometer systems and accommodation within
the ETC environmental chamber of the Kinexus host system
for controlled temperature testing. Because its drums
are cantilevered and suspended from the SER2 base chassis, the model
SER2-M
is also capable of fluid immersion testing.
For availability and further information regarding
this model, contact
Malvern Instruments directly.
|
 |
The model SER2-R has been adapted
for use on the
Reologica Instruments
NOVA line of
rotational rheometer systems and accommodation within
the ETC environmental chamber of the NOVA host system
for controlled temperature testing. Because its drums
are cantilevered and suspended from the SER2 base chassis, the model
SER2-R
is also capable of fluid immersion testing.
For availability and further information regarding
this model, contact
Reologica Instruments directly.
|
 |
Custom SER2 models can also be adapted for use on
legacy rheometer platforms such as the Rheometrics
RMS-800/RDS-2 and the Bohlin VOR rotational rheometer host systems. Contact us today for more details on
custom SER2 systems to fit your host rheometer system needs.
|
|
▪
UNPARALLELED
PERFORMANCE REGARDLESS OF THE HOST SYSTEM BEING USED
▪
MULTIPLE MODES OF
PHYSICAL TESTING WITH ONE UNIT
Extensional melt
rheology
Solids tensile
testing
Tear
testing
Peel/adhesion
testing
Friction
testing
High-rate fracture
testing
▪ TRUE CONTROL OF
EXTENSIONAL DEFORMATION RATE AND UNIFORMITY
Watch a
videoclip
of the SER in action.
▪ SMALL UNIT SIZE
ALLOWS FOR ACCOMMODATION WITHIN ENVIRONMENTAL
CHAMBER AND
CONTROLLED TEMPERATURE TESTING
▪ SMALL SAMPLE SIZE
(5-200 mg)
Watch a
videoclip
of the easy sample preparation procedure.
▪ EASY OPERATION,
SAMPLE LOADING AND CLEANING
Watch a
videoclip
of the quick and easy sample loading procedure.
▪ QUICK TEST TIME, HIGH
REPRODUCIBILITY
▪ REDUCES TESTING
EQUIPMENT COSTS, LABOR & MATERIAL
USE
Transforms a conventional rotational rheometer into a
high-throughput, miniature universal testing station.
|
|
|
|
|
Unlike the original
SER-HV model line that had hard-fixed (non-removable) drums, the new SER2 model line has
detachable drums that
can be configured from any number of materials of construction, surface
coatings and textures, as well as drum dimensions. Because the SER2 drums are fully
detachable, polymer sample clean-up from the drum surfaces has never been easier -
even for the most challenging
of polymer residues, simply remove the drums and soak them in an appropriate solvent bath
for complete sample removal. Whether it's sample clean-up, improved sample
gripping, or controlled surface properties measurements, the detachable drum
feature of the SER2 gives the user tremendous flexibility and breadth
of capability with regard to
physical material characterization.
Note that each SER2 model comes standard with a
set of SER2-DS drums.
|
 |

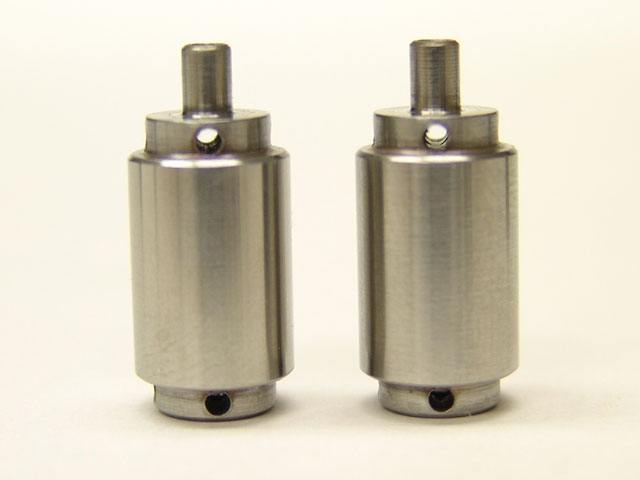

The SER2-DS drum set that comes standard
with each SER2 model consists of 2
precision ground drums constructed of hardened,
surgical grade stainless steel. These drums are well suited for
extensional melt rheology measurements where polymer sample clean-up can often
be challenging. Each drum has an OD of 0.406 inches (10.3 mm). |
 |

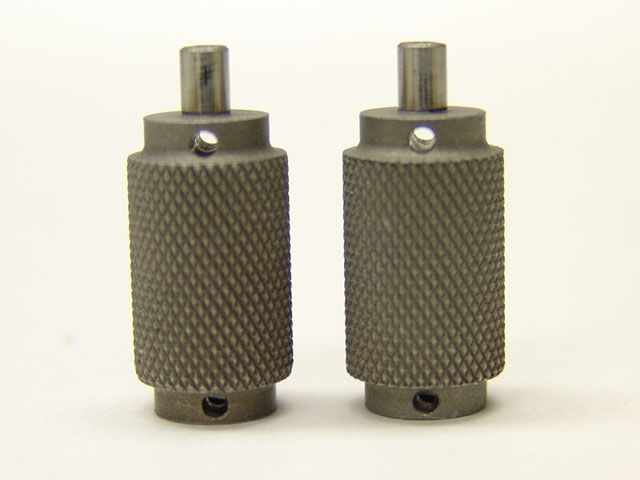

The SER2-DK drum set consists of 2
fine-knurled drums constructed of hardened, surgical grade stainless steel.
These drums are useful in gripping soft semi-solid samples during extensional
rheology or tensile measurements with the SER2. Each drum has a nominal OD
of 0.406 inches (10.3 mm).
|
 |

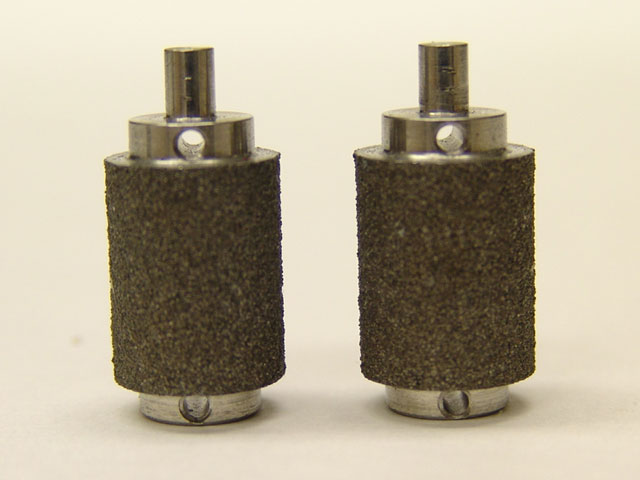

The SER2-DR drum set consists of 2
rough textured (similar to a 120-grit sandpaper in texture) drums
constructed of surgical grade stainless steel.
These drums are useful in gripping soft solid samples or biomaterials during extensional
rheology or tensile measurements with the SER2, particularly during fluid
immersion testing. Each drum has a nominal OD
of 0.406 inches (10.3 mm).
|
|
Contact us for information regarding custom SER2 drum
design options.
|
|
|
